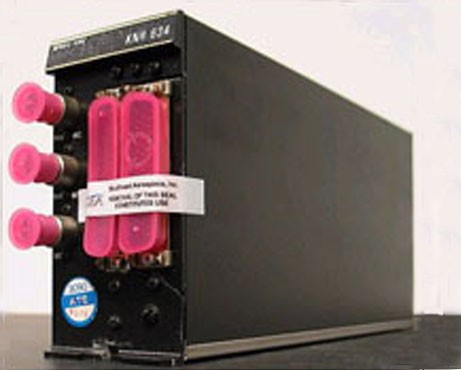

Nav Receiver

Brand: Honeywell Bendix/King

Features

    * 200-channel navigation receiver
    * 40-channel glidelsope receiver
    * Marker beacon receiver
    * Internal VOR/LOC converter
    * XYZ RMI option available will provide 3-wire synchro RMI information in addition to Sine/Cosine OBI information provided by all KNR-634 versions (see table below)
    * Models available with different combinations of above features (see table below)
    * Used with KFS-564 and KFS-564A flip-flop frequency selector which displays active and standby frequencies in gas discharge numerics.
    * Can be used with nav indicators such as KNI-582, KPI-552, KPI-553A, KI-206
    * Can be interfaced with any 400 Hz, Electrically Zeroed, ARINC CDI or HSI nav display
    * Serial outputs provided for automatic channeling of King DME systems
    * Superflags for both NAV and Glideslope receivers are compatible with most popular Flight Director / Autopilot systems
    * Similar to KFS-564A but DOES NOT accepts ARINC 429 channeling and provides ARINC 429 outputs for use with EFS 10 and ARINC 429 based systems
    * TSO'd
    * 28VDC
